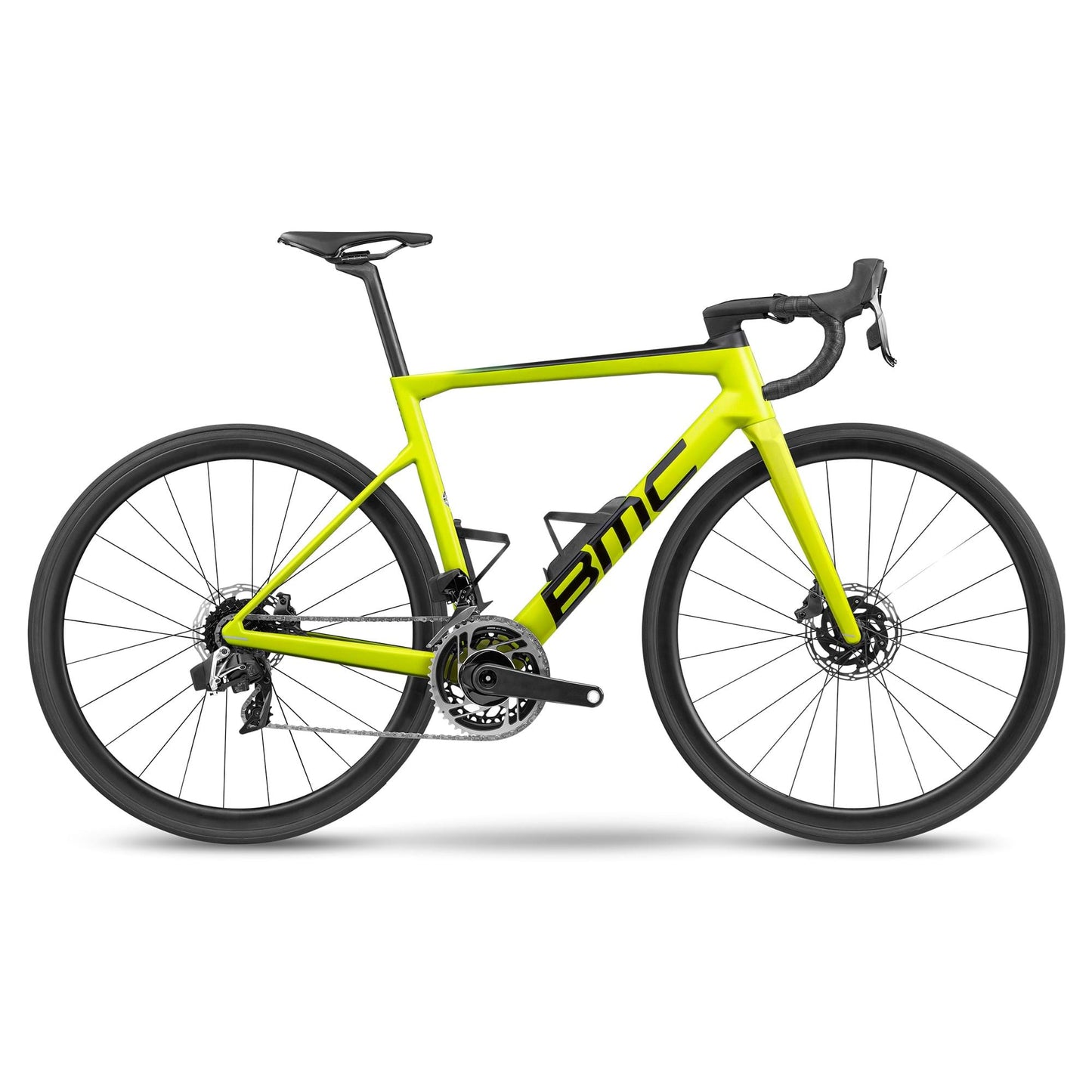

BMC TEAMMACHINE SLR01 FOUR FORCE AXS HRD
BMC TEAMMACHINE SLR01 FOUR FORCE AXS HRD
10 years ago, BMC launched a bike that kickstarted a revolution in the design and construction of the performance road bike.
The Teammachine SLR, has won every major title that a bike can win including; Monuments, World Championships, Olympic Games and the Tour de France.
Using the combined knowledge from the past decade, we've changed the game again to deliver an all-new, class-leading frameset ready to lead for another 10 years.
ACCELERATED COMPOSITES EVOLUTION TECHNOLOGIE + (ACE+)
ACE+ not only runs through thousands of virtual prototypes using Stiffness, Weight and Compliance as key influencers, but now includes a fourth key factor in the prototyping, Aerodynamics.
D-SHAPE SEAT POST
Improved seatpost design removing any excess materials, providing aerodynamic benefits and extra compliance.
BOTTOM BRACKET AND TORSIONAL STIFFNESS
Renowned for its power transfer, the new Teammachine SLR goes one step further with a wider bottom bracket contact area provided by the new downtube shape and the optimized carbon layup.
FORK PROFILE
An aerodynamically reshaped fork with stealth dropout design and integrated thru-axle nut show that high technical proficiency can go hand in hand with beautiful, minimalist aesthetics.
AEROCORE DESIGN
Our Aerocore system consists of two superlight carbon cages that seamlessly integrate into the reshaped downtube and seat tube, resulting in significant drag reduction when used with bottles.
COMFORT IS SPEED
The new Teammachine SLR is more compliant than ever, thanks to the latest evolution of the Tuned Compliance Concept (TCC) technology. Fine tuning of the carbon layups, essential vertical frame and seatpost flex, to improve traction and control, resulting in reduced muscle fatigue.
INTEGRATED COCKPIT SYSTEM (ICS2)
All new ICS2, with significant weight savings, high stiffness, clean aesthetics and integrated device mounts for the most popular devices.
FRAME
- Teammachine SLR 01 Premium Carbon with Aerocore Design
• ICS Technology, Stealth Cable Routing
• Integrated Aerocore Bottle Cages
• Stealth Dropout Design
• TCC Race Compliance Level
• PF86 Bottom Bracket
• Integrated Seatpost Clamp
• Flat Mount Disc
FORK
- Teammachine SLR 01 Premium Carbon
• ICS Technology, Stealth Cable Routing
• TCC Race Compliance Level
• Stealth Dropout Design
• Flat Mount Disc
• 12x100mm Thru-Axle
• 48mm Offset (Size 47-51), 43mm Offset (Size 54-61)
GEARS
- 2x12
CHAINWHEEL
- SRAM FORCE AXS 48-35T
CASSETTE
- SRAM FORCE XG-1270 10-28T
CHAIN
- SRAM FORCE 12 Speed
FRONT DERAILLEUR
- SRAM FORCE eTap AXS
REAR DERAILLEUR
- SRAM FORCE eTap AXS
SHIFTERS
- SRAM FORCE eTap AXS HRD
BRAKES
- SRAM FORCE eTap AXS HRD, Centerline XR Rotors (160/160)
HANDLEBAR
- BMC RAB 02, Ergo Top Shape, Compact Bend
STEM
- BMC ICS2 - Integrated Cockpit Design
SEATPOST
- Teammachine SLR 01 Premium Carbon D-Shaped Seatpost
• 15mm Offset
SADDLE
-Fizik Argo Vento R5 (140mm)
HUBS
- CRD-351 SL
RIMS
- CRD-351 SL Carbon, Tubeless Ready, 35mm
TIRES
- Vittoria Corsa, 25mm
TIRE CLEARANCE
- 30mm (Measured Width)
WEIGHT LIMIT
- 110 Kg
ASTM CLASSIFICATION
- Level 1
CONFIGURABLE
- No
FRAMESET OPTION
- No
